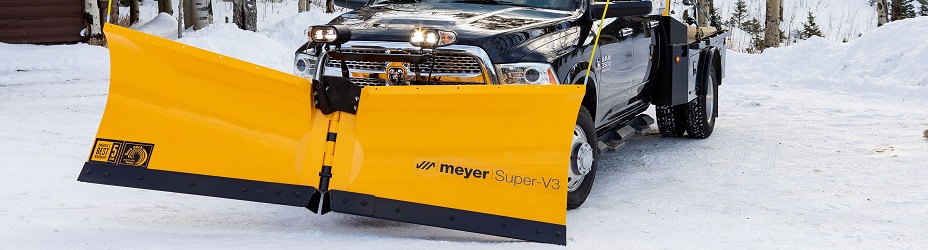

Super-V3

Super-V3

Next Level Plowing

The Meyer Super-V3 brings next generation innovation to contractor-grade Vplows. Made for ¾-ton and larger trucks, it’s engineered with features designed to move more snow, faster and with more control. With its pistol grip controller and independently controlled wings, you can choose from a V, scoop or straight blade configuration with push-button ease. The Super-V3 gives you safer nighttime plowing with its standard Nite Saber® LED lights and features industry-leading ground clearance for better stacking and less bottoming out. Made of carbon steel, hook it up, and change the way you plow forever.

    Performance

    V, As In Versatile

    The all-new Super-V3 features industry-leading ground clearance that lets you stack snow higher with less chance of bottoming out. Offering unmatched versatility, this plow comes standard with LED lights and Meyer’s exclusive one-button pistol grip controller and dual-acting locking cylinders giving you ultimate control, forward and back. The Super-V3 is here to take your capability to the next level.

    Light The Night With Exclusive Nite Saber® LED

    Plowing in the dark is a fact of life. You need the best light possible to give your customers the best possible result. That’s why all Meyer Super-V3 plows come equipped with brilliant Nite Saber® LED lights. Not only are they brighter than standard lights, they have a longer life expectancy and draw less power from your electrical system. Nite Saber® lights are fully adjustable and iso-mounted to resist vibration.

    Hands-Free Plowing- A Meyer Exclusive


    You're in total control thanks to the Meyer Super-V3's exclusive pistol grip controller, featuring real-time diagnostics and a Hands-Free Plowing (HFP) mode that lets you use the shift lever to control the up/down movement of the bade. The versatile controller allows you to create any configuration with push-button simplicity. And it also features double-click technology. All you have to do is double-click a button, and the moldboard will complete the move without you having to continue pressing the button.

    Double-Acting Cylinders Knock Out The Lock-Out

    The Super-V3 has made lock-out systems obsolete. With its standard equipment locking cylinders you can back drag snow with improved ease and efficiency. Just set the angle you want, and the blade position is locked whether you’re plowing forward or backward.

    Trip-Edge Design For Smooth Performance

    Super-V3 plows all feature trip-edge moldboards. When you hit an obstruction, only the lower portion of the blade gives way, no matter which configuration you choose. They absorb and dissipate the shock so you don’t lose the entire load, or subject your truck, your plow, and yourself to the full impact.

    Center Upper & Lower Deflectors For A Clear View & Clean Finish

    The Meyer Super-V3 features an exclusive upper-sealed center deflector to keep snow and ice off your windshield. On the bottom is a center steel cutting edge that eliminates snow trails left by ordinary V-plows.

    Dura-Slick Paint with Teflon® Powers Through More Snow, Faster

    All Meyer carbon steel moldboards are painted with Meyer Dura-Slick™ Paint. This automotive-style paint with Teflon® is baked on to the steel for durability and better snow-rolling action. It's the reason why Meyer plows throw snow farther and move it faster than the competition.

    Reliability

    Reliability

    Engineered For Industry-Leading Reliability

    Meyer is dedicated to bringing you products you know you can rely on. That’s why Super-V3 plows are engineered and built with our Reliable Over-time Construction (ROC) system. ROC combines ongoing manufacturing improvements with state-of-the-art technology and stringent quality control procedures to deliver a more rugged and reliable product you and your business can count on.



    5-Year America's Best Warranty

    Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration.  This industry-leading warranty means you can count on your Meyer plow to deliver reliable, profitable service for your business and your customers.

    5 Year Warrenty

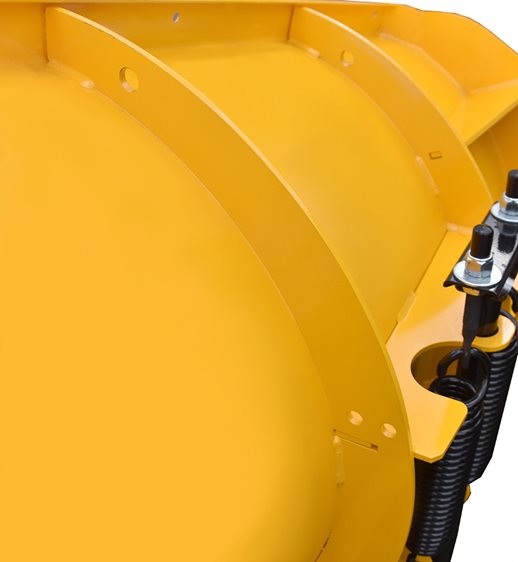

    Slot And Tab Construction Deliver Built-To-Last Performance

    To add strength and rigidity to all our plows, Meyer uses only slot and tab construction. This gives you a more robust, precise-fitting plow. Laser cut steel components are assembled using robotic welders for exacting consistency plow after plow. Our insistence on using only the best materials and methods allows us to offer the industry’s best warranty.

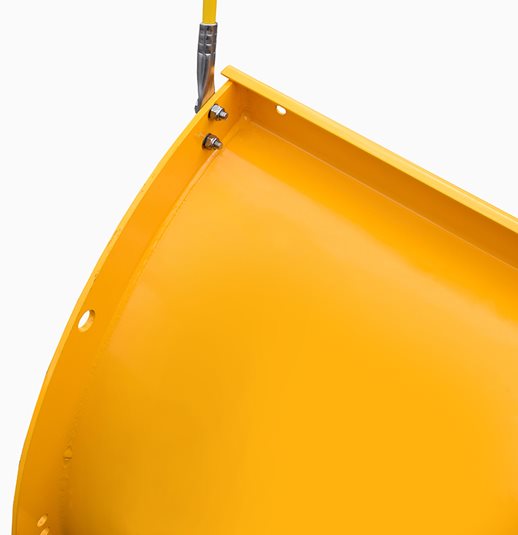

    Continuously Welded Ribs Bring Added Strength


    Meyer is the only plow manufacturer to employ continuously-welded outside ribs on our plows. It’s ruggedness you can see. More importantly it increases the plow’s strength and performance, and your business’s performance, too.

    Pre-Drilled Holes Make Adding Deflectors Easy

    Meyer Super-V3 moldboards are manufactured with pre-drilled holes to make adding a deflector a snap, saving you time. And pre-drilling the holes at the factory means they are coated with Dura-Slick paint to help prevent rust.



    Encased Power Unit With Adjustable Drop Speed

    The driving force behind every Meyer snow plow is a reliable and responsive hydraulic system. The Super-V3's Standard Operating System has a streamlined appearance with an encased V-73 power unit and patented cable management system for reliable service. The hydraulic system also features an adjustable drop speed to handle various plowing conditions and meet operator preferences.

    Ease Of Use

    Ease Of Use

    On & Off. Easy & Fast.

    Keeping you on the job is Job One at Meyer.  We've manufactured the Super-V3 to attach and detach in minutes with a simpler 2-plug electrical attachment. Once the Super-V3 is detached, your vehicle will have an off-the- assembly line appearance. And Meyer's free-standing jack stand allows you to adjust the V3's height on uneven or shifting surfaces, making on/off easy in any condition.



    Hands-Free Plowing- A Meyer Exclusive


    You're in total control thanks to the Meyer Super-V3's exclusive pistol grip controller, featuring real-time diagnostics and a Hands-Free Plowing (HFP) mode that lets you use the shift lever to control the up/down movement of the bade. The versatile controller allows you to create any configuration with push-button simplicity. And it also features double-click technology. All you have to do is double-click a button, and the moldboard will complete the move without you having to continue pressing the button.

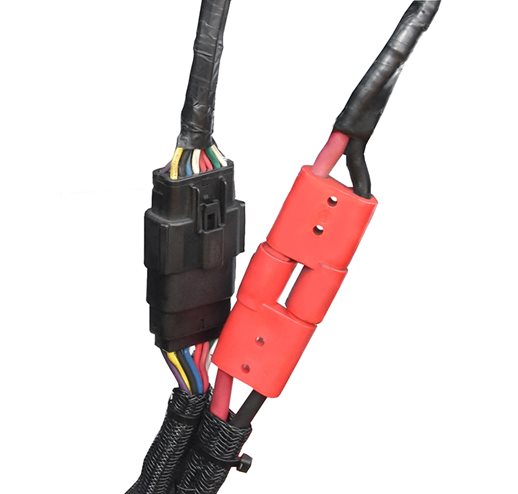

    Two-Piece Plug For Swift And Simple Connection


    The Super-V3 simplifies electrical connection/disconnection with a patented two-piece plug that is faster and easier than traditional three-plug connectors. Get connected and get on the road faster than ever.

    System Diagnostics Keep you In The Know In Real Time

    When you're out plowing, issues arise. Quickly diagnosing problems is key to keeping your rig on the job. So, Meyer includes sophisticated system diagnostics on the back of our pistol grip controllers. By matching the controller's flashing light sequence to the chart on the back of the controller you can easily and accurately isolate the issue so you can resolve it and get back to work.

    System Diagnostics

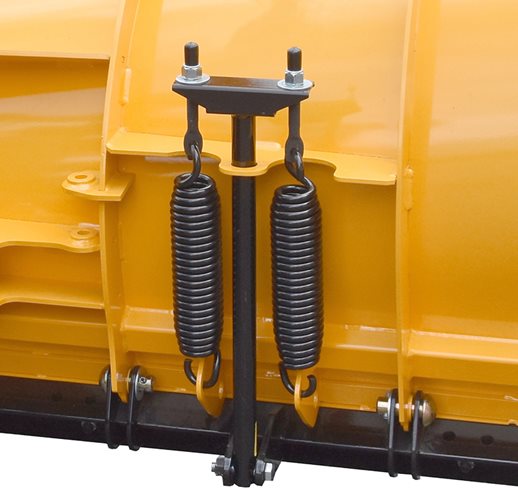

    Field Adjustable Trip Springs To Maximize Uptime

    When you need to adjust your plow, the last thing you need is to stop working for a trip back to the shop. That's why the Meyer Super-V3 is equipped with trip springs that you can quickly and easily adjust wherever you are, unlike more complicated springs found on other plows. The Super-V3 is designed to keep you on the road and out of the shop.











    Fleet Friendly Operating System

    Fleet Friendly Operating System

    The Super-V3 is fleet-friendly thanks to the Meyer Standard Operating System. You can interchange with straight moldboards and controllers in minutes giving you unlimited versatility within your fleet.

    Specifications

    Get to know the Super-V3 plow.



    Quick Facts:

    • Type: Bottom-Trip

    • Vehicle: 3/4-ton trucks and larger

    • Construction: Steel

    • Part #: 53600 Blade Type: Bottom-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 29-1/2" to 38-1/4" 75 cm to 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 88" 224 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 954 lbs 433 kg
    • Part #: 53650 Blade Type: Bottom Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 29-1/2" to 38-1/4" 75 cm to 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 88" 224 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 954 lbs 433 kg
    • Part #: 53675 Blade Type: Bottom Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 29-1/2" to 38-1/4" 75 cm to 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 88" 224 cm Angling Rams: Weight Complete: 1084 lbs 492 kg
    • Part #: 53685 Blade Type: Bottom Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 29-1/2" to 38-1/4" 75 cm to 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 88" 224 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1084 lbs 492 kg
    • Part #: 73650 Blade Type: Bottom-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 38-1/4" 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 88" 224 cm Angling Rams: Weight Complete: 864 lbs 392 kg
    • Part #: 73685 Blade Type: Bottom Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 88" 224 cm Angling Rams: Weight Complete: 989 lbs 449 kg
    • Part #: 53700 Blade Type: Bottom Trip Moldboard Length: 9' 6" 290 cm Moldboard Height: 29-1/2" to 39-1/4" 75 cm to 100 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 99" 251 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 994 lbs 451 kg
    • Part #: 53750 Blade Type: Bottom Trip Moldboard Length: 9' 6" 290 cm Moldboard Height: 29-1/2" to 39-1/4" 75 cm to 100 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 99" 251 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 994 lbs 451 kg
    • Part #: 53775 Blade Type: Bottom Trip Moldboard Length: 9' 6" 290 cm Moldboard Height: 29-1/2" to 39-1/4" 75 cm to 100 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 99" 251 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1124 lbs 510 kg
    • Part #: 53785 Blade Type: Bottom Trip Moldboard Length: 9' 6" 290 cm Moldboard Height: 29-1/2" to 39-1/4" 75 cm to 100 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 99" 251 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1124 lbs 510 kg
    • Part #: 73750 Blade Type: Bottom Trip Moldboard Length: 9' 6" 290 cm Moldboard Height: 29-1/2" to 38-1/4" 75 cm to 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 99" 251 cm Angling Rams: Weight Complete: 905 lbs 410 kg
    • Part #: 73785 Blade Type: Bottom Trip Moldboard Length: 9' 6" 290 cm Moldboard Height: 29-1/2" to 38-1/4" 75 cm to 97 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 99" 251 cm Angling Rams: Weight Complete: 1045 lbs 474 kg
    • Part #: 53500 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1034 lbs 469 kg
    • Part #: 53800 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1034 lbs 469 kg
    • Part #: 53575 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1164 lbs 528 kg
    • Part #: 53885 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1164 lbs 528 kg
    • Part #: 73800 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 5 per wing Plow Trip Springs: Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: Weight Complete: 1059 lbs 480 kg
    • Part #: 73575 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1164 lbs 528 kg
    • Part #: 73885 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1164 lbs 528 kg
    • Part #: 73885 Blade Type: Bottom Trip Moldboard Length: 10' 6" 320 cm Moldboard Height: 29-1/2" to 40-1/2" 75 cm to 103 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 4 per wing Plow Trip Springs: 2 per wing Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 109" 277 cm Angling Rams: 1-1/2" x 12" 3,81 cm x 30,48 cm Weight Complete: 1164 lbs 528 kg
