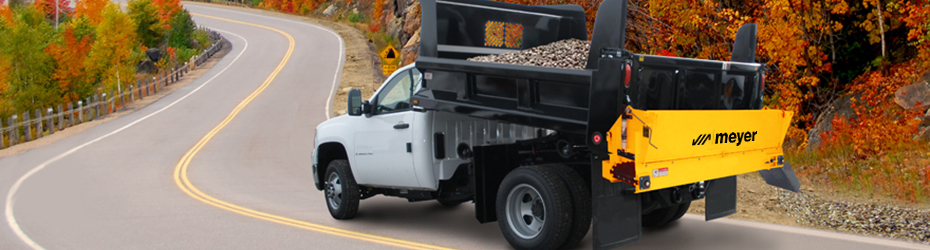

Cross Conveyor Dump Truck Spreader

Cross Conveyor Dump Truck Spreader

Versatility for Four-Season Use

Equip your medium-duty dump truck to handle your year-round spreading needs. Whether you’re shouldering material, filling a ditch, patching asphalt or spreading sand on snow and ice (which requires an optional spinner attachment), the heavy-duty Cross Conveyor is an under tailgate system that can get the job done.

    Performance

    Performance

    Efficient performance

    The Meyer Cross Conveyor is the most efficient method of distributing granular or asphalt material on the market today. It mounts quickly and easily underneath your dump truck's tailgate for year-round sue. No matter what the job, this heavy-duty conveyor system performs like a workhorse while saving you labor, time and material.



    Cross Conveyor Includes High-Performing Features

    • Screw-type gate jacks that allow material output adjustment when loaded.

    Cross Conveyor gate jack

    • A standard 24-inch extension that can be mounted on either side for optimal material.

    • An optional spinner attachment is available for snow and ice control.

    Cross Conveyor Spinner

    • An optional four-foot motorized conveyor extension to give you extra reach.

    Reliability

    Reliability

    Reliable Performance When the Pressure Is On

    When you’re on the job, time is money and unreliable equipment is just unacceptable. That’s why we designed and built the Cross Conveyor in ways that enhance reliable performance. These include:

    1. Powder-coated paint for greater durability over the life of your spreader.

    2. Hinged-top cover protects spreader during normal dump body operations and makes dump truck functional during non-spreading operations.

    3. High temperature, belt-over chain conveyor to make the dump truck functional during non-spreading activities.

    4. Replaceable rubber chain shields run the full length of the trough, minimizing material buildup in the conveyor chain.

    Ease of Use

    Ease of Use

    Built With Operator Convenience In Mind

    Good work truck equipment expands a vehicle’s utility and makes you more money. But with crew turnover and pressure to get to the next job faster, attachments need to be easy to use and easy to attach or detach.

    Designed for Optimal Convenience and Ease-of-Use

    • Unit mounts below the dump body to allow normal dump body operations when spreader is not in use which saves time by eliminating in-season installations and maximizes year-round equipment investment.

    Cross Conveyor on dump truck

    • Driver and passenger side feed gates allow material to be discharged from either side (only with optional spinner attachment) and the quick detaching 24-inch extension can be removed easily without any tools.

    Cross Conveyor close up

    Specifications

    Get to know the Cross Conveyor dump truck tailgate spreader.



    Quick Facts:

    • Type: Dump truck tailgate

    • Vehicle: Medium-duty dump trucks

    • Width: 102 inches

    • Flow rate: 240 tons/hr.

    • Materials: Asphalt, granular materials

    • Motor: Central hydraulics

    • Construction: Carbon steel

    • Part #: 62729 Hopper Width: 96" 244 cm Hopper Depth: N/A N/A Hopper Height: 12" 30 cm
      Total Height: 32" 81 cm Spread Width (min-max): 0' - 0' N/A - N/A Empty Weight: 1100 lbs 499 kg Max Capacity Load: 27 cu. ft. N/A
      Max Capacity Weight: 2500 lbs 1134 kg Spreading Material: Free Flowing Materials Warranty: 1 Year Hopper Material: Steel
      Spinner Diameter: 18" 46 cm Spinner Material: Poly Tire Diameter: N/A Frame Material:

    Purchase

    All the information you need to make a Meyer spreader yours is at your fingertips. Find a Meyer dealer, learn about financing options and purchase online. It’s never been so easy to get your hands on the products more snow removal professionals choose over the competition.
