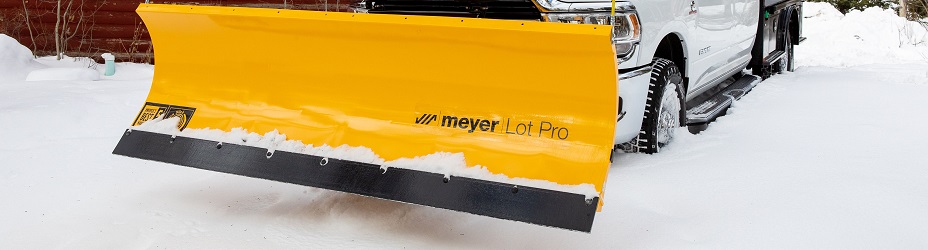

Lot Pro

Lot Pro

Designed For Around-the-clock Contractor Use

For those who want to make a finished lot look like it does in July, the Lot Pro™ is a professional-grade plow for contractors who need to plow large parking lots and streets. The Lot Pro fits on 3/4-ton pickup trucks and larger. The Lot Pro is available with your choice of two mounting systems: Standard Operating System and EZ-Mount Plus.  Both offer premium features such as self-diagnostics and hands-free plowing.  The Standard Operating System also offers industry-leading ground clearance.

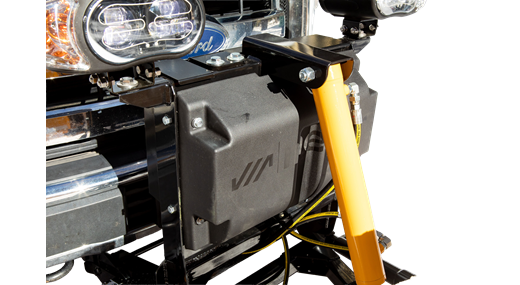

Now Available with Meyer's Pro Mount Attachment System

Meyer's new Pro Mount innovative hydraulic snowplow mounting system provides the most efficient attachment solution. With the Pro Mount, attach or detach the snowplow:

  • From one side of the plow
  • In 3 easy steps
  • In less than a minute


    Performance

    The Results You Want in Less Time

    The Lot Pro™ features the tallest and most aggressive contractor-class moldboard on the market. Thirty-two inches tall with a 75° attack angle, Lot Pros deliver better overall snow clearing performance in less time. Plus, its aggressive attack angle allows for superior back-dragging performance.

    Highway Plow-inspired Black Iron

    Behind the moldboard is totally redesigned "black iron" consisting of robust, tubular steel A-frame and pivot bar. Highway plow-inspired, this simplified design creates a stronger plow at key pressure zones and more evenly distributes the load. The pressure zones are further enhanced by three, reinforced points-of-contact and a tubular bar along the entire back of the moldboard for increased torsional strength.

    Highway Plow-inspired Black Iron

    Superior Snow Rolling Action

    Steel Lot Pros are powder coated with DURA-SLICK™ automotive paint with Teflon® for superior snow-rolling action. Lot Pros are also available in polyethylene.

    Superior Snow Rolling Action

    Light The Night With Exclusive Nite Saber® LED

    Plowing in the dark is a fact of life. You need the best light possible to give your customers the best possible result. That’s why all Meyer Lot Pro plows come equipped with brilliant Nite Saber® LED lights. Not only are they brighter than standard lights, they have a longer life expectancy and draw less power from your electrical system. Nite Saber® lights are fully adjustable and iso-mounted to resist vibration.

    Reliability

    In the snow plowing business, downtime is not an option. That’s why the Meyer Lot Pro is built using Reliable Over-time Construction (ROC)…the detailed things we do to make our plows more rugged and reliable. ROC is the result of manufacturing improvements and state-of-the-art technology combined with stringent quality control procedures.

    Slot and Tab Construction

    Meyer couldn't offer the industry's best warranty on our plows if we didn't build them using slot and tab construction. This method of construction makes for a stronger, more precise fitting plow. Laser cut steel components are assembled using robotic welders that never tire and never make a mistake. It's why every plow comes off the line ready to provide years of trouble-free service.

    Slot and Tab Construction

    Continuously Welded Ribs

    Meyer plows are continuously welded on the outside ribs. This Meyer exclusive not only gives our plows a more rugged look, but more importantly, it increases their strength and performance so they can handle anything Mother Nature sends their way.

    Pre-drilled Deflector Holes

    Meyer Lot Pro moldboards are manufactured with pre-drilled holes so it’s easy to add a snow deflector. This means you save time when adding this important safety feature that prevents snow from impairing your view through the windshield. Since they are pre-drilled at the factory, the holes are sealed with Dura-Slick paint to help prevent rust.

    Pre-drilled Deflector Holes

    5-Year America's Best Warranty

    Meyer is proud to offer a full five-year warranty on complete plow systems with an online registration.  The competition can’t beat that.

    5 Year Warranty

    Ease of Use

    Ease of Use

    Choice of Two Operating Systems That Make Your Job Easier

    Meyer is pleased to offer two operating systems: The all-new Standard Operating System™ and the EZ-Mount Plus™ system. The Standard Operating System* has been designed to provide industry-leading ground clearance and is equipped with an adjustable drop speed and Nite Saber LED lights. The EZ-Mount Plus system offers premium features such as self-diagnostics and hands-free plowing. Both conveniently attach or detach in under a minute and leave the vehicle with an off-the-assembly line appearance when not attached.

    STANDARD OPERATING SYSTEM

    Industry-Leading Ground Clearance

    The Standard Operating System offers up to 9” of ground clearance for improved stacking and transport height. You’ll carry your plow high and be less prone to bottoming out.

    Light The Night With Exclusive Nite Saber® LED

    Plowing in the dark is a fact of life. You need the best light possible to give your customers the best possible result. That’s why all Meyer Super-V3 plows come equipped with brilliant Nite Saber® LED lights. Not only are they brighter than standard lights, they have a longer life expectancy and draw less power from your electrical system. Nite Saber® lights are fully adjustable and iso-mounted to resist vibration.

    Encased Power Unit With Adjustable Drop Speed

    The Standard Operating System has a streamlined appearance with an encased power unit and patented cable management system for reliable service. It also features an adjustable drop speed for varying plowing conditions and preferences.

    Easy-To-Use Controller

    The Standard Operating System is controlled using a pistol grip controller featuring Hands-Free Plowing, one-button functionality and diagnostics.

    EZ-Mount Plus System

    Hands-Free Plowing - A Meyer Exclusive

    Meyer knows controller preferences vary by driver, that’s why we offer two options for Meyer Lot Pro plows:  EZ-1 deluxe pistol grip or joystick.  Both controllers feature diagnostics and a Hands-Free Plowing (HFP) mode. When activated, HFP uses the shift lever to control the up/down movement of the blade. The EZ-1 pistol grip controller also features double-click technology.  Simply double-click a button, and the moldboard will automatically move in that direction without having to keep your finger on the button.

    One-Piece Plug (Patented)

    Unlike competitors who have up to three plugs, the Meyer EZ-Mount Plus system comes with a one-piece patented plug to connect/disconnect the plow from the vehicle. No more fumbling in the middle of the night trying to figure out which plug goes where. The one-piece plug gets you back in the cab faster and easier.
    One-Piece Plug

    System Diagnostics

    When you're out plowing, issues arise. Meyer makes it easy to get you back on the road using our system diagnostics found on the back of our pistol grip controllers. Just match the controller's flashing light sequence with the chart on the back of the controller to isolate the issue. Not only does this reduce your downtime, it gets you back doing what you do best – plowing snow.
    System Diagnostics

    Reliable and Responsive Operation

    The driving force behind every Meyer snow plow is a reliable and responsive hydraulic system. The EZ-mount plus triple-layered sealed coils and connectors virtually eliminate corrosion and moisture often found in electrical and mechanical systems. And unlike competitive systems, all Meyer hydraulic systems ship standard with custom-molded covers to help protect the units from road salt and grime.

    Fleet Management

    EZ-Mount Plus mounting systems are fleet-friendly because the moldboards and controllers are interchangeable. Attachment and detachment take only moments for unlimited vehicle transformations.

    Specifications

    Get to know the Lot Pro plow.



    Quick Facts:

    • Type: Full-trip

    • Vehicle: 3/4-ton trucks and larger

    • Construction: Steel 7'6" – 9', Poly 7'6" – 9'

    • Part #: 09402 Blade Type: Full-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 92" 234 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 801 lbs 363 kg
    • Part #: 09402 Blade Type: Full-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 92" 234 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 766 347 kg
    • Part #: 09402 Blade Type: Full-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 92" 234 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 766 347 kg
    • Part #: 79402K Blade Type: Full-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 92 234 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: N/A
    • Part #: 79402K Blade Type: Full-Trip Moldboard Length: 8' 6" 259 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 92" 234 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 801 lbs 363 kg
    • Part #: 09400 Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1-1/2 x 10" 3,81 cm x 25,40 cm Weight Complete: 766 lbs 347 kg
    • Part #: 09400 Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 731 lbs 332 kg
    • Part #: 09400 Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 731 lbs 332 kg
    • Part #: 79400K Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 766 lbs 347 kg
    • Part #: 79400K Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1 ½" x 10" N/A x 25,40 cm Weight Complete: 731 lbs 332 kg
    • Part #: 79400K Blade Type: Full-Trip Moldboard Length: 7' 6" 229 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 81" 206 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 766 lbs 347 kg
    • Part #: 09401 Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1-1/2 x 10" 3,81 cm x 25,40 cm Weight Complete: 783 lbs 355 kg
    • Part #: 09401 Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 783 lbs 355 kg
    • Part #: 09401 Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 783 lbs 355 kg
    • Part #: 09405 Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 3/8" Poly 9,5 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 947 lbs 430 kg
    • Part #: 79401K Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 748 lbs 339 kg
    • Part #: 79401K Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2" x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 748 lbs 339 kg
    • Part #: 79401K Blade Type: Full-Trip Moldboard Length: 8' 244 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 86" 218 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 748 lbs 339 kg
    • Part #: 09403 Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 816 lbs 370 kg
    • Part #: 09403 Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 781 lbs 354 kg
    • Part #: 09403 Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1 ½" X 10" N/A x 25,40 cm Weight Complete: 781 lbs 354 kg
    • Part #: 09407 Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 3/8" Poly 9,5 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1-1/2" x 10" 3,81 cm x 25,40 cm Weight Complete: 978 lbs 444 kg
    • Part #: 79403K Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 816 lbs 370 kg
    • Part #: 79403K Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: ½” x 6" N/A X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 816 lbs 370 kg
    • Part #: 79403K Blade Type: Full-Trip Moldboard Length: 9' 274 cm Moldboard Height: 32" 81 cm
      Moldboard Gauge: 12 ga 2,7 mm Vertical Ribs: 6 Plow Trip Springs: 4 Cutting Edge: 1/2 x 6" 1,27 cm X 15,24 cm
      Avg Width at Full Angle: 97" 246 cm Angling Rams: 1 ½” x 10" N/A x 25,40 cm Weight Complete: 816 lbs 370 kg
